SP-1000

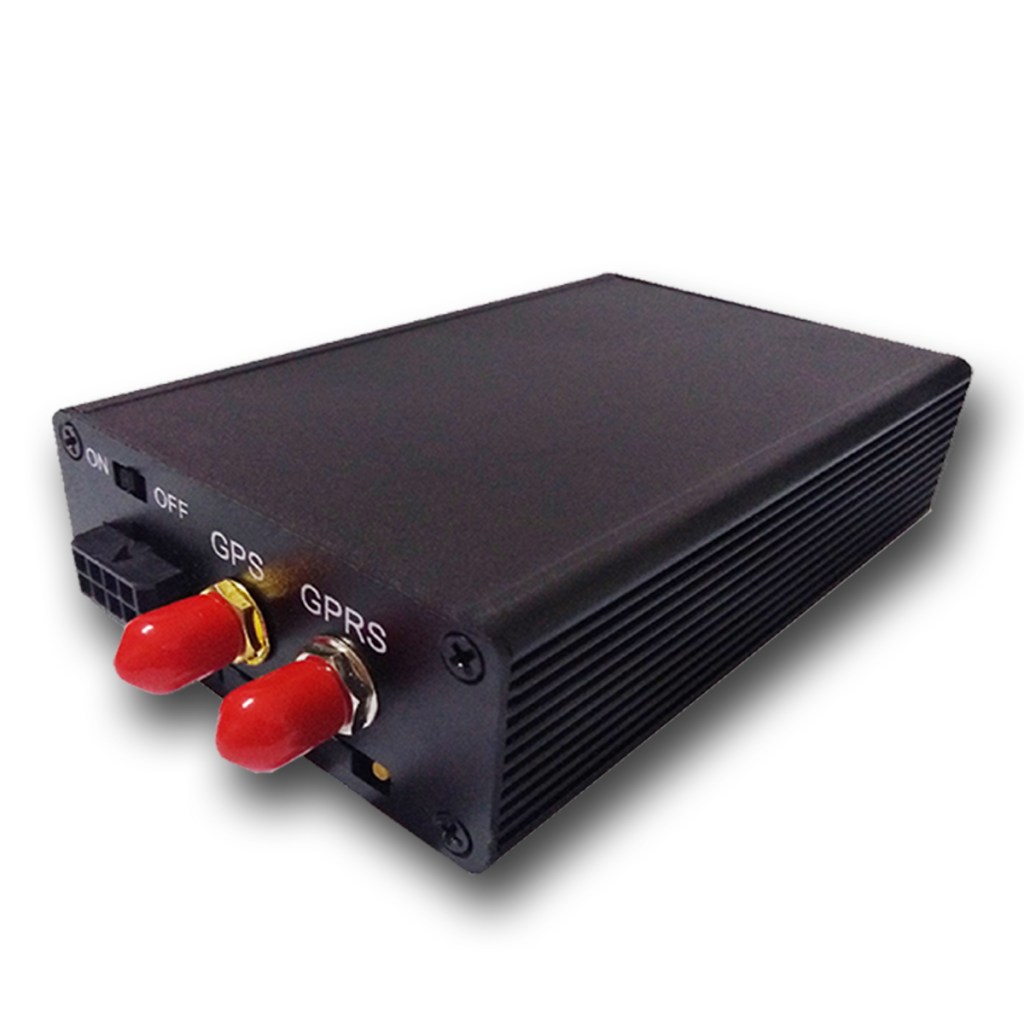

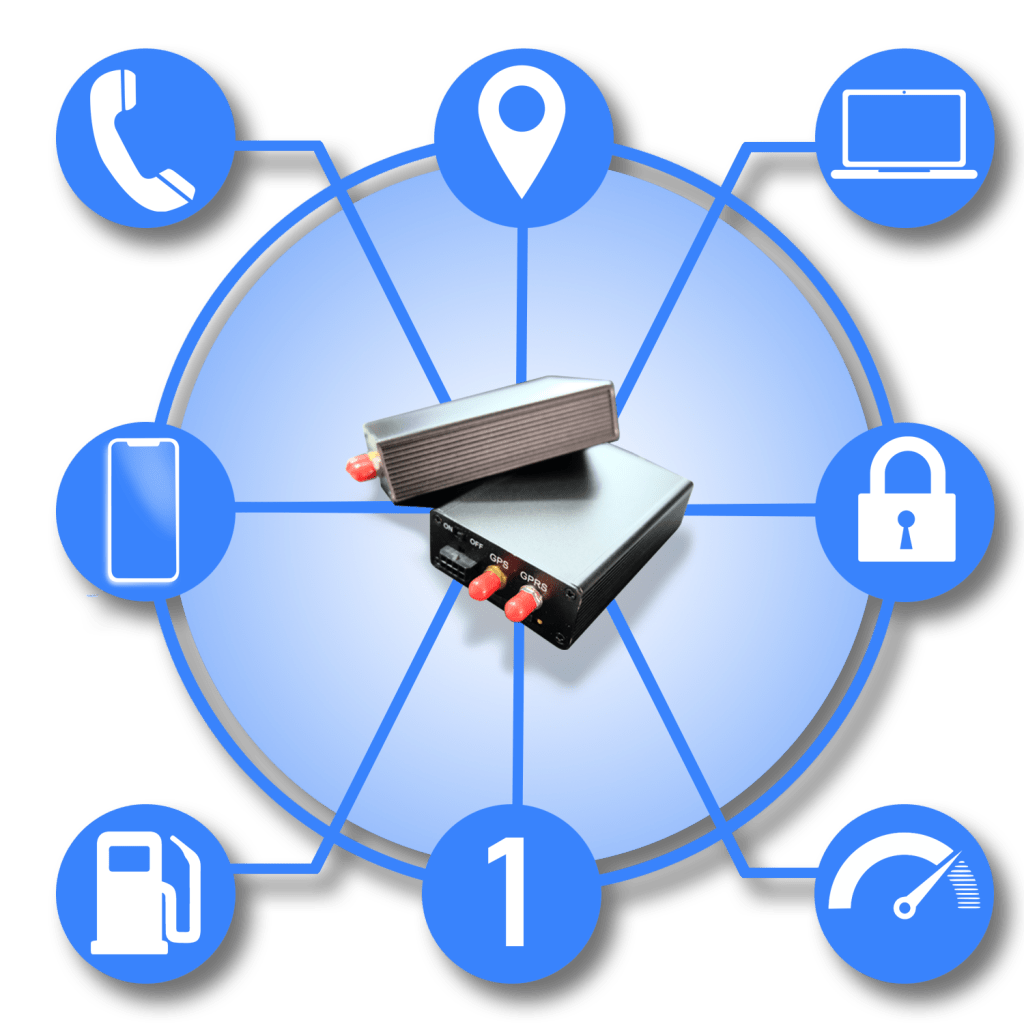

Sky Tracking SP1000 uses industrial grade wavecom GPS/GPRS module, 16 channels uBlox GPS module, and 120MHz high speed processor. It features GPS real time positioning, vehicle signal monitoring, vehicle control, alarm report, arm, speaking, and listening. To save the operating airtime cost, it uses UDP communication protocol. Thus, making the data size small. A ComConfig Tool program will be used to initialize the SP1000 such as the IP, port, APN, vehicle ID, heart beat period, hand shake period, etc. To configure the device, a RS232 com cable will be used to connect SP1000 with a PC. SP1000 also supports SMS command setting.

• Main power input:               DC7~36V
• Working current:   24V DC: 60-120 mA 12VDC: 110-210mA
• Standby current:                 24VDC: <55 mA  12VDC: <105mA
• Backup Power:                     Around 2.2hr at reporting 30sec
• Signal in/out:                      10 in/3 out
• Com port:                            RS232, +5VDC output
• Communication:               SMS, GPRS
• Operating Temperature: -25 °C to +75 °C
• Storage Temperature:         -40 °C to +85 °C
• Relative Humidity:                93±2%, non-condensing
• Vibration:                                        10-55-10Hz, amplitude: 2mm
• Acceleration: 9.8m/s²
• GSM Frequency bands      900 MHz /1800MHz

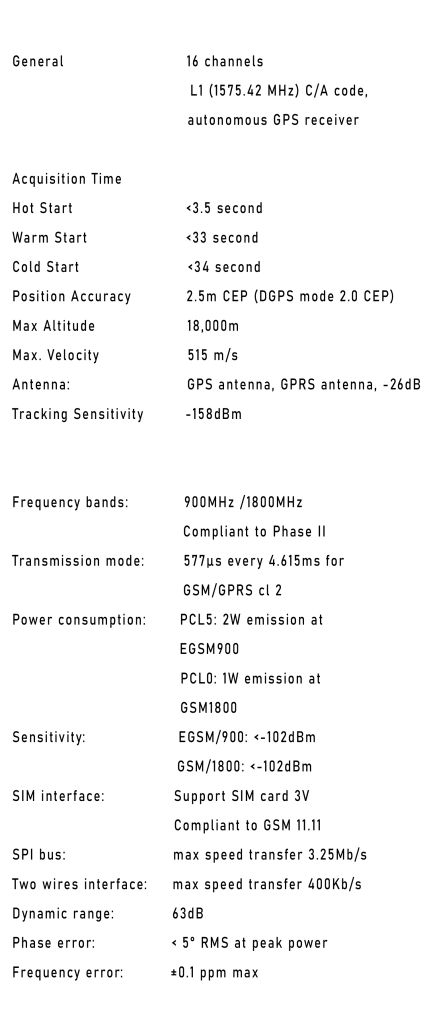

• GPS Acquisition Time
• Hot Start                                          <3.5 seconds
• Warm Start                                     <33 seconds
• Cold Start                                        <34 seconds
• GPS General                         16 channels, L1, C/A code
• Temp sensor                         Range: -55~+125 °C Discrepancy: ±0.5 °C
